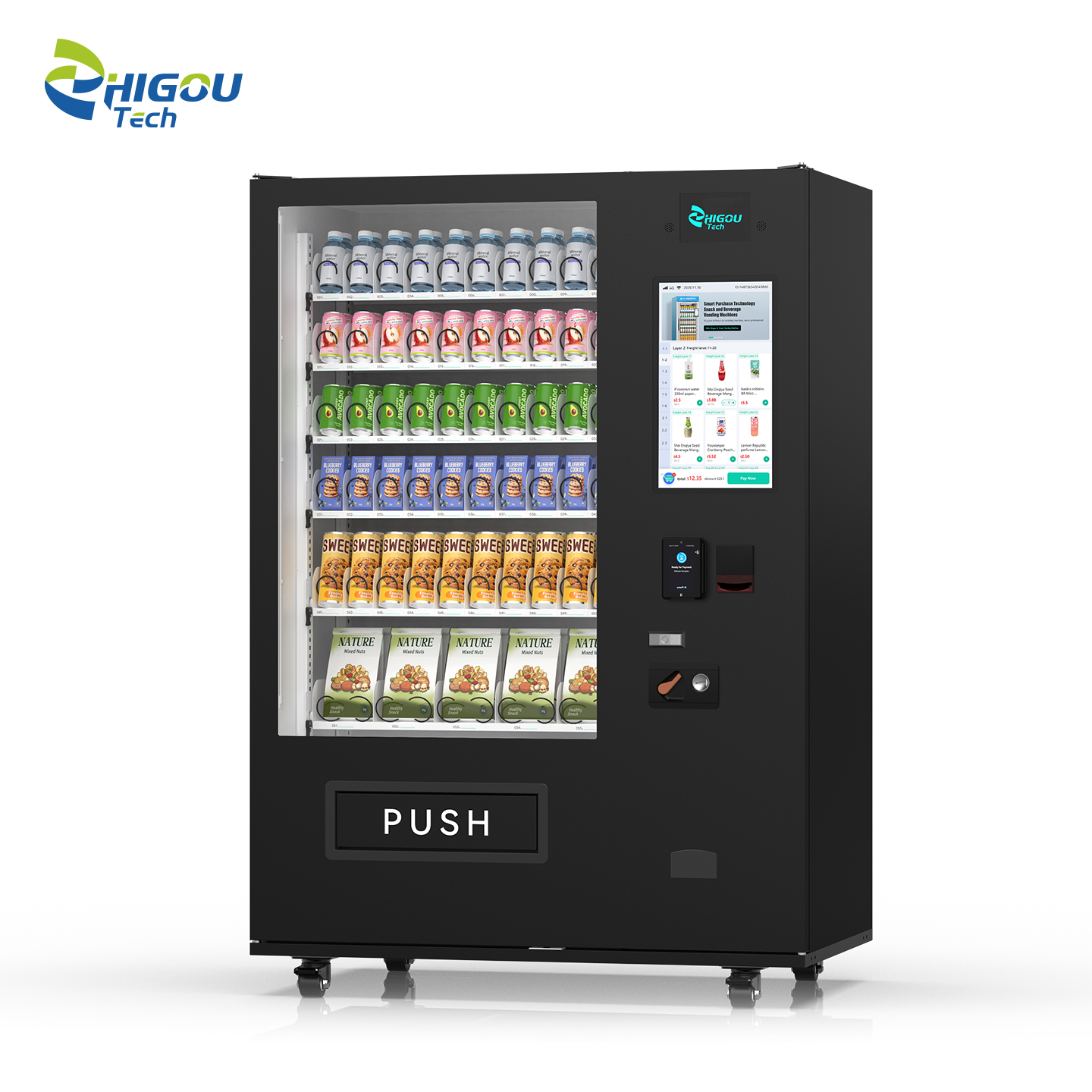

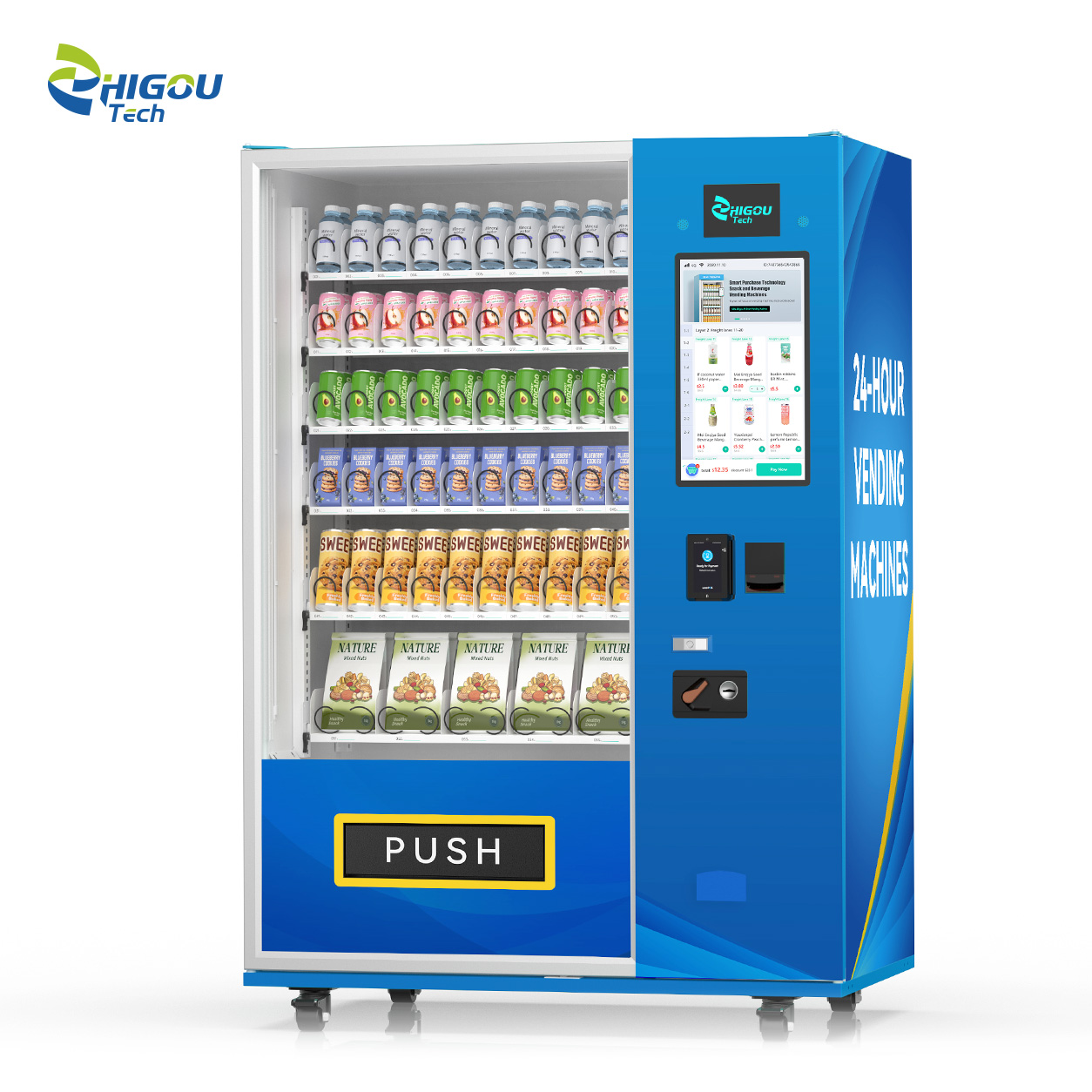

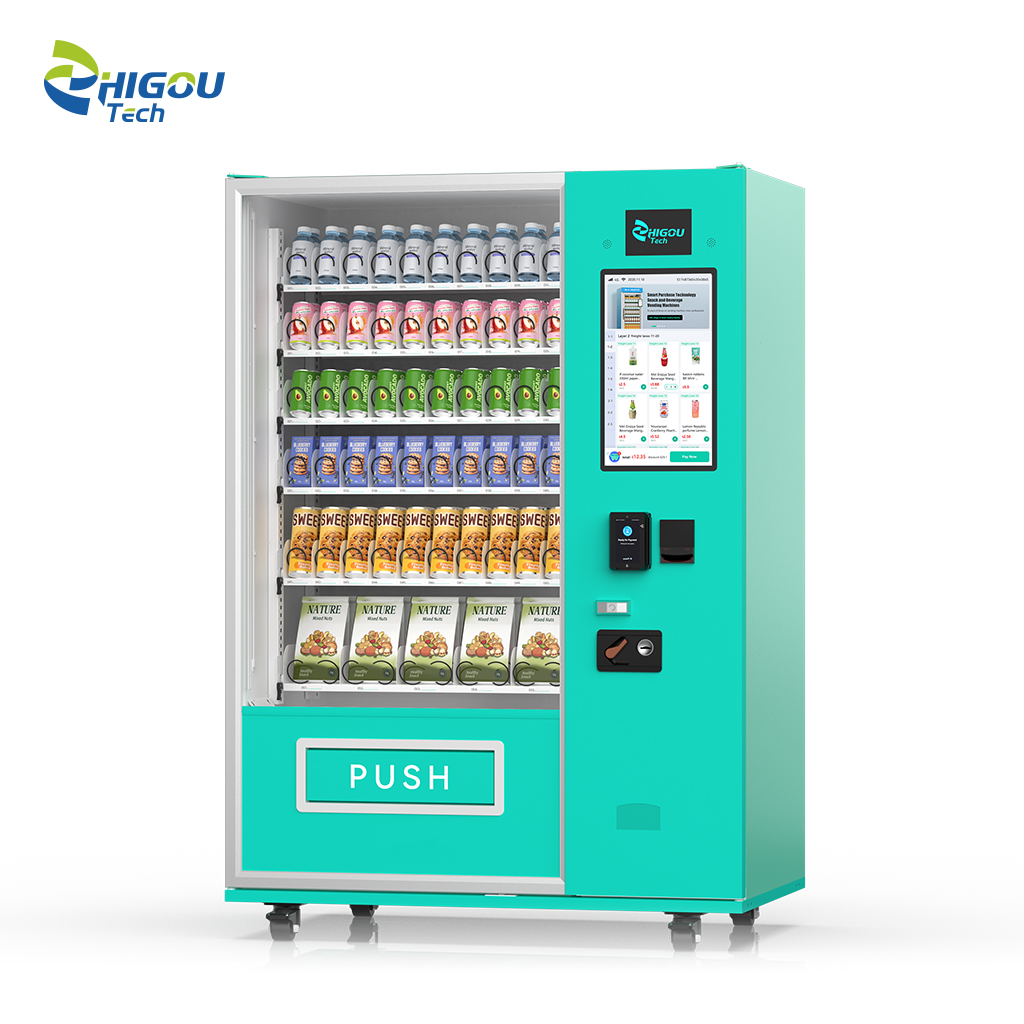

21.5-Inch Touchscreen Vending Machine with 60 Adjustable Slots

21.5-Inch Touchscreen Vending Machine with 60 Adjustable Slots

Device Model: ZG-ZL-N60-S21.5

Device Dimensions:  1355 × 830 × 1970 mm

Layer: 6

Weight: 305kg

Standard Spirall: 60 slots

Daily Power Consumption: 5–8 kWh / 24h

Capacity: 300-600 units

Service: Supports OEM customization, temperature control, payment method options, color customization, and API integration.

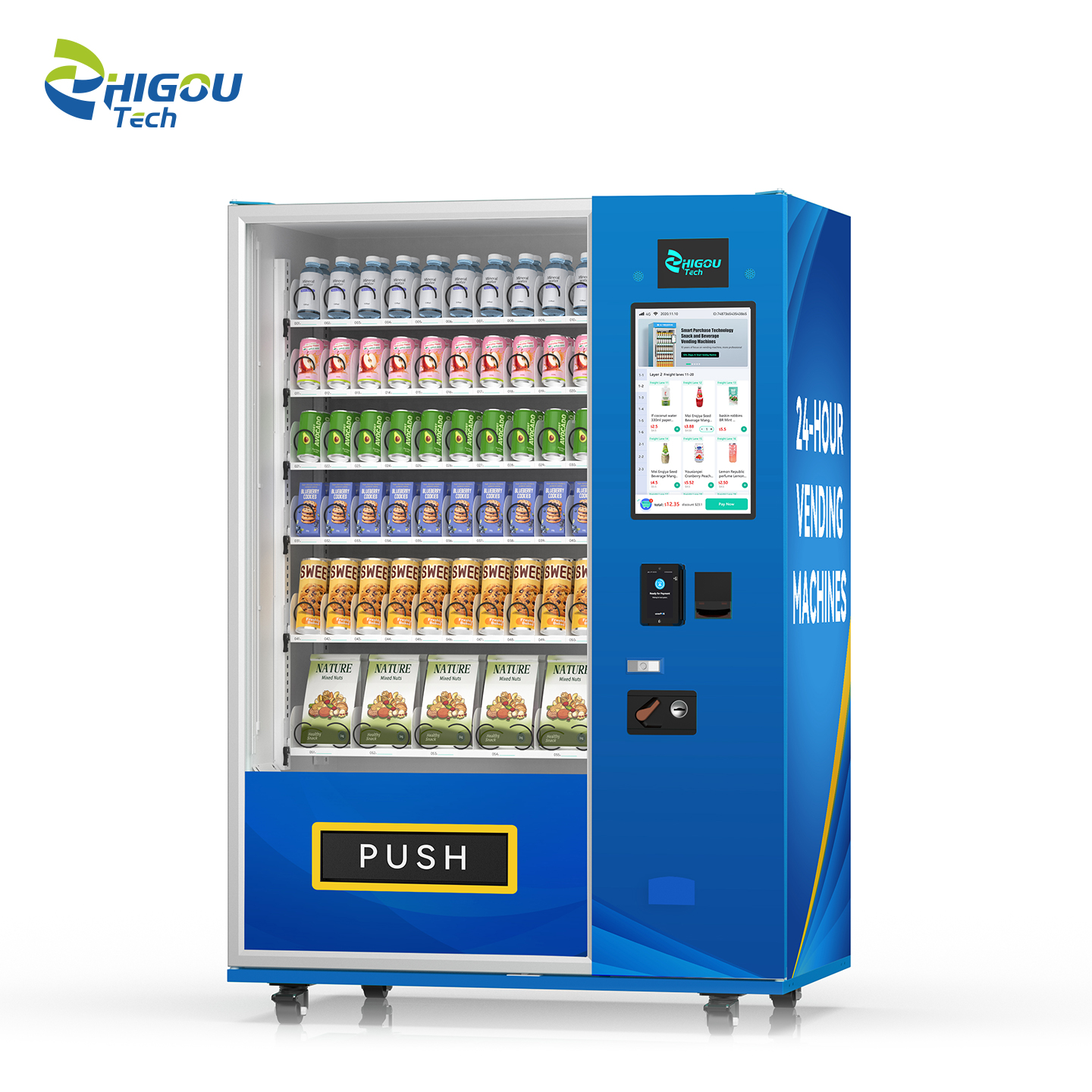

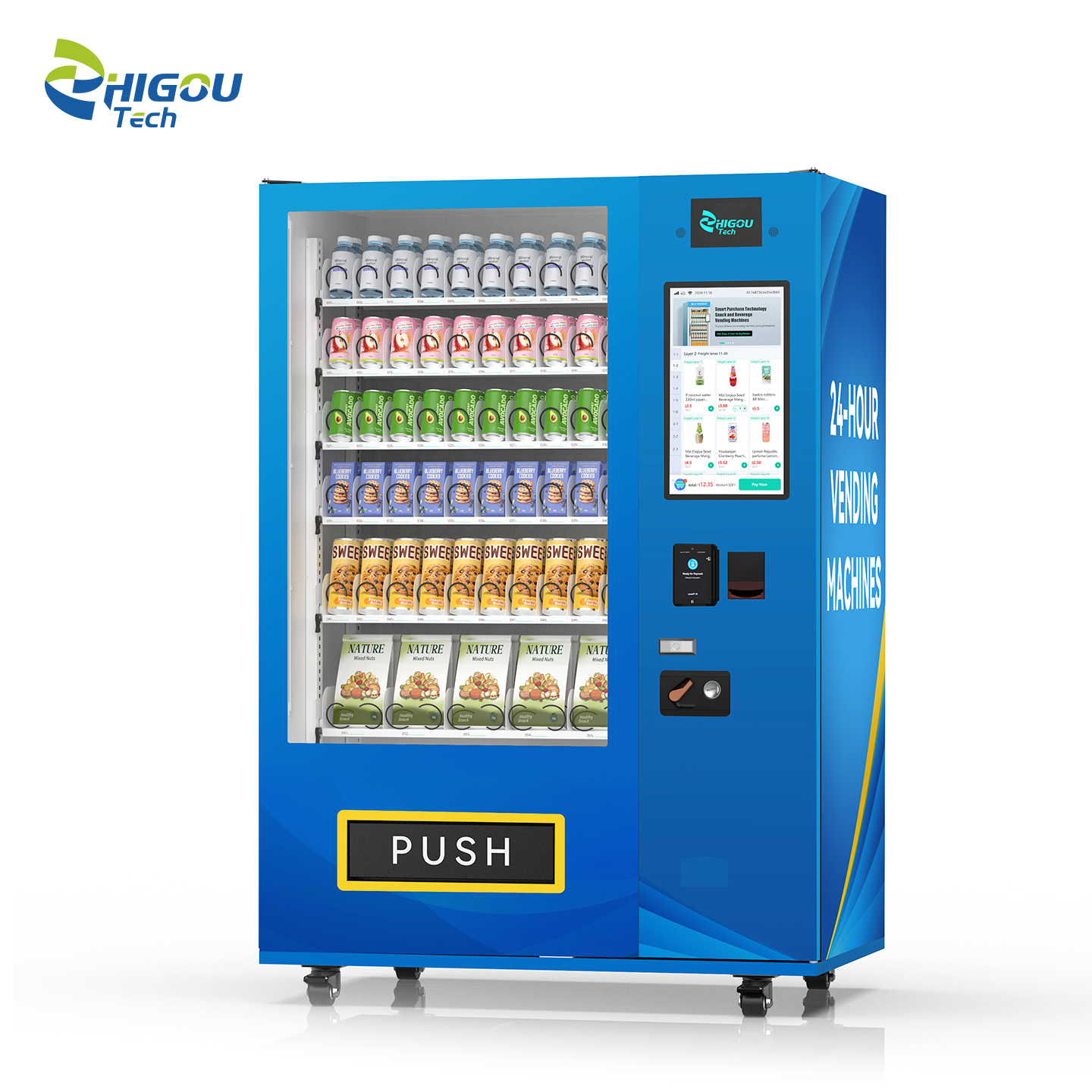

Color: Black(upgraded configuration)/Tiffany Blue(standard configuration)/Customizable colors

Defogging power: Electrically Heated Insulated Glass Door

Warranty: 1 Year

Payment method: QR Code / Card / Bill / Coin

Certificates: ISO 9001, CE, RoHS, LVD, Machinery Directive (MD), and FCC








Send Inquiry
Description
product-1-1

10+ YEARS OF VENDING MACHINE EXPERIENCE

Over 30 product models are available to meet diverse business needs.

Contact Now

Products Description

Manufactured by Zhigou Technology, this 21.5-Inch Touchscreen Vending Machine with 60 Adjustable Slots has 60 adjustable product slots, and a 21.5-inch touchscreen. It is suitable for the unattended retail of snacks, bottled beverages and pre-packaged foods, and can feature refrigeration and/or heating capabilities based on the specific need. It has a 21.5 inch high-definition touchscreen that makes the machine easy to operate and accept various payment options such as QR code, card, paper bills and coins. The double pane, electro heat glass door helps to minimize fogging, keeping products clearly visible. The coil vending machine has a forced air cooling circulation system to provide a even and stable internal temperature. Both refrigerated and heated models can be used in the temperature range of 4-10ºC and 20-30ºC, respectively, depending on the product, so as to choose the right temperature for each use. The 60 product slots are spring-loaded so they can be spaced apart or together to fit various products. The total capacity of the unit will be around 300-600 units, depending on product specification and arrangement. Base is fitted with 360 degree industrial swivel casters for easy movement and repositioning as well as optional L shaped mounting brackets and leveling feet to suit installation needs for various locations. The commercial spiral vending machine is compatible with a cloud-based SaaS management dashboard that enables operations personnel to access sales data, product inventory and machine status remotely. Low-stock alerts help to ensure proper restocking at the right moments, making day to day operations easier. Suitable for use in factories, industrial parks, office buildings, hotels, campuses and tourist sites, offering a flexible and convenient 24-hour self-service retail solution for any commercial environment.

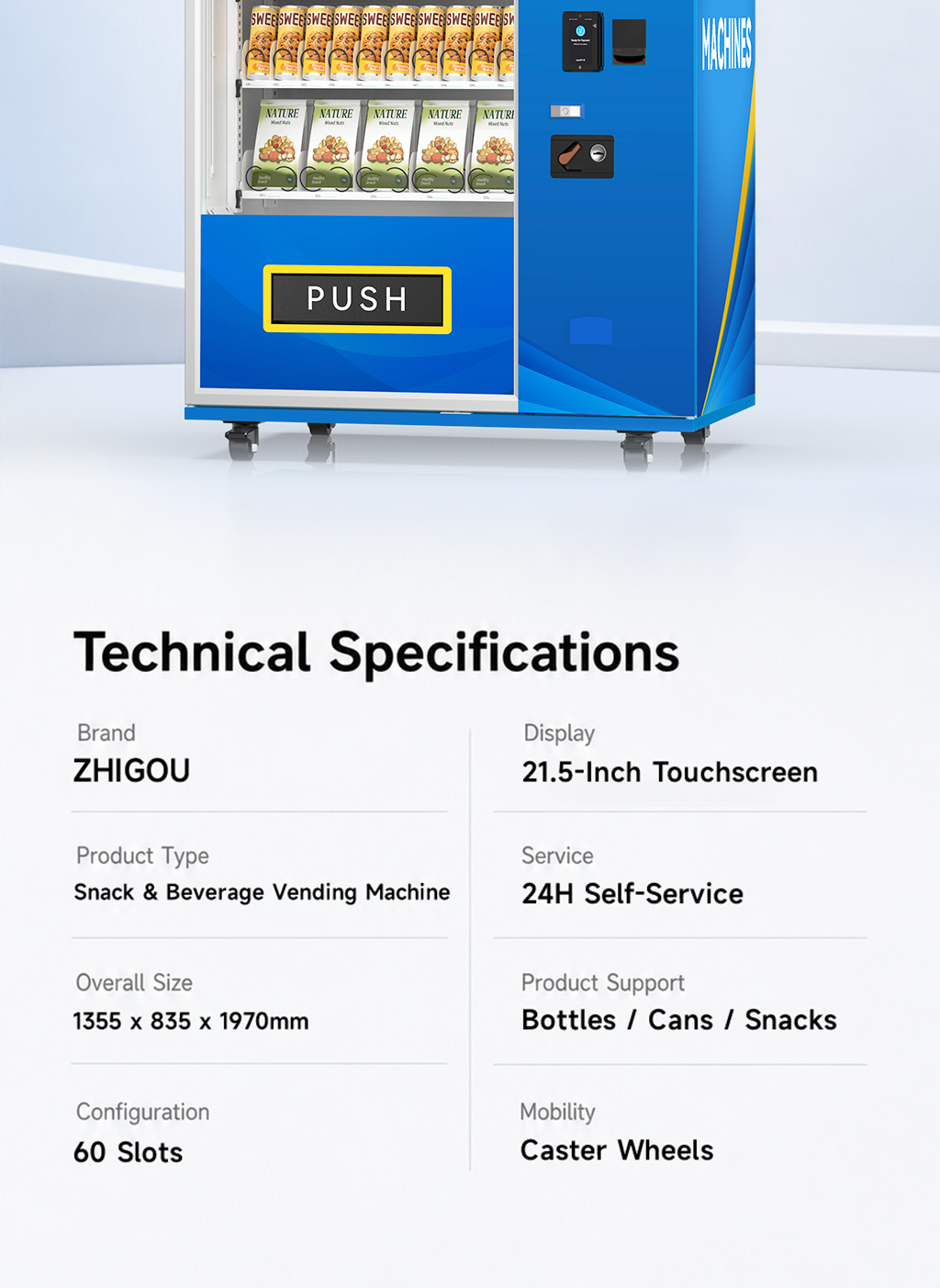

21.5-Inch Touchscreen Vending Machine with 60 Adjustable Slots Specifications.jpg

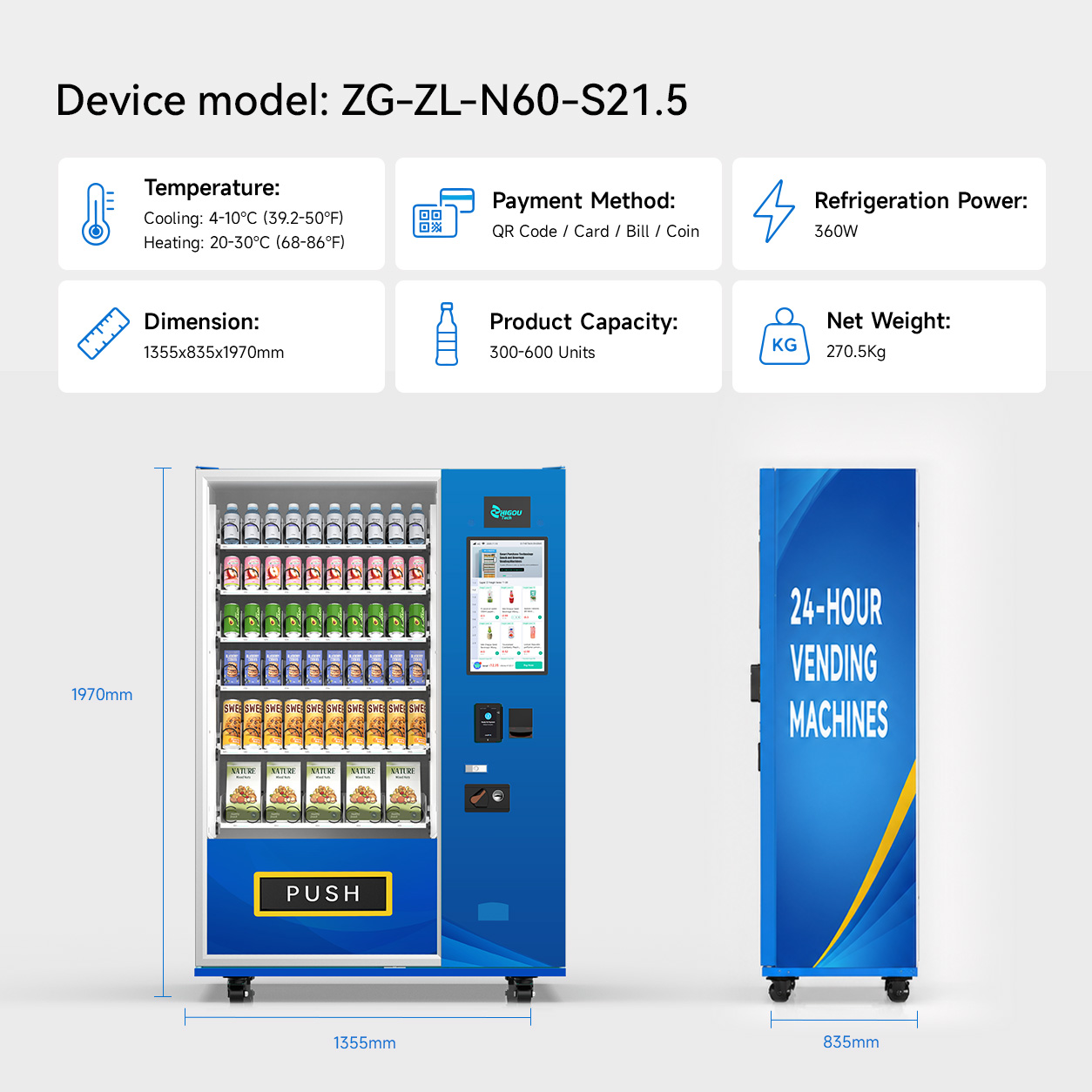

TECHNICAL SPECIFICATIONS

ParameterSpecification
Device ModelZG-ZL-N60-S21.5
Device Dimensions1355 × 830 × 1970 mm
Daily Power Consumption5–8 kWh / 24 h
Operating Ambient Temperature5–32°C
Refrigeration Temperature Range4–10°C
Standby (Room Temperature) Power45 W
Heating Temperature Range20–30°C
Capacity300–600 Units
Standard Spiral Shelves60-slots
Refrigeration Power360 W
Payment MethodsQR Code / Card / Bill / Coin
Heating Power500 W
Applicable ProductsComprehensive Vending Machine
Weight305 kg
Back-end ManagementPC + SaaS Intelligent Back-end

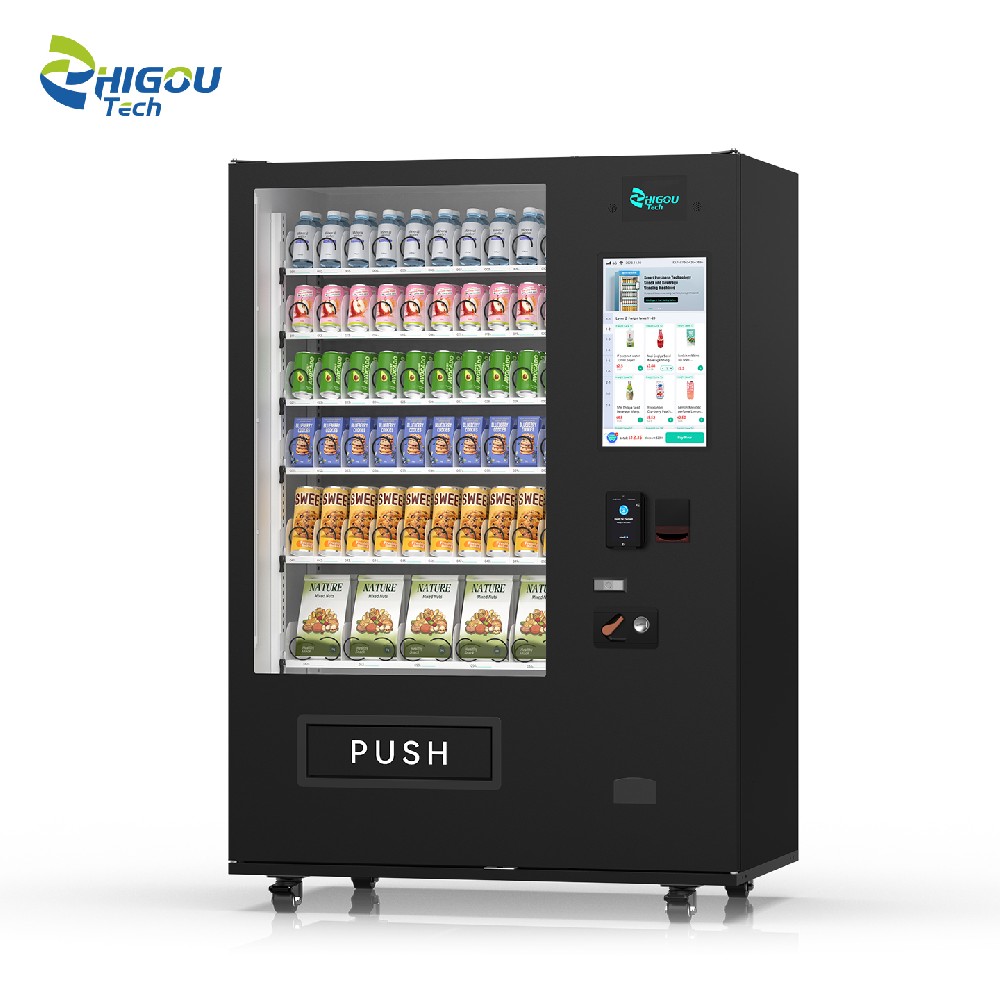

Why choose Zhigou Tech 21.5" TouchScreen Vending Machine?

1. Electrically Heated Defogging Glass Door for Unmatched Product Presentation.

The commercial spiral vending machine has been upgraded with electrically heated, defogging glass, which prevents fogging and condensation to ensure that customers can clearly see the contents of the cabinet, even when there are large temperature differences between the inside and outside, thereby increasing the conversion rate of customers.


Electrically Heated Defogging Glass Door for Unmatched Product Presentation.jpg


2. High-density cyclopentane thick insulation layer, long-lasting energy-saving cold lock

A 40mm thick high-density cyclopentane foaming layer, Zhigou 21.5-inch touchscreen vending machine's heat insulation performance far exceeds that of ordinary foaming materials, significantly reducing heat loss and saving electricity costs over the long term.

3.  Flexible deployment options—suitable for both mobile and stationary use

360° industrial swivel casters make moving and transporting the unit effortless; optional L-shaped floor brackets and leveling feet ensure stable stationary placement, meeting installation requirements in various settings.


21.5-Inch Touchscreen Vending Machine with 60 Adjustable Slots Flexible Deployment.jpg

4. SaaS Cloud-Based Remote Intelligent Management

Using the intelligent management dashboard, remotely monitor sales data, inventory levels, and equipment operating status from your phone or computer. Receive automatic alerts for out-of-stock items, reduce the cost of manual site inspections, and streamline bulk operations for greater efficiency.

5. Low-power LED lighting + low daily electricity consumption: 24V gentle LED light strips evenly illuminate the products; the entire touchscreen vending machine's average daily electricity consumption is only 5-8 kWh, enabling cost control of electricity usage even when unattended for a long time.

6. 60 sets of adjustable product lanes, suitable for a wide range of product sizes

The spacing between the spring-loaded product lanes can be freely adjusted, with a capacity of 300–600 items. This coil vending machine can accommodate bottled beverages, canned drinks, bagged snacks, and boxed prepackaged foods, offering flexible and extensive SKU options.

7. Dual-temperature setting (cooling and heating) means it can be used all year long.

Cooling range: 4-10℃, which is sufficient for supplying fresh drinks and snacks; heating range: 20-30℃, which is suitable for selling hot drinks. One unit can be used to easily switch between product categories, thus for an extended period of the year, you can earn revenue.


The dual-temperature setting of 21.5-Inch Touchscreen Vending Machine with 60 Adjustable Slots.jpg


The Application of 21.5-Inch Touchscreen Vending Machine with 60 Adjustable Slots

The 21.5-Inch touchscreen vending machine with 60 adjustable slots is ideal for almost any high foot traffic area, with easy expansion options for your retail locations at any time of day or night:

- ✅ Office Building: Offers afternoon tea, drinks and snacks for the staff making the office experience better.

- ✅ Factory: On-demand meal and hydration options for shift workers in closed off factory environments.

- ✅ Children's Programs: Sells drinks, light meals and snacks to children and families in compliance with the regulations (school breakfast, lunch and snack programs, state and federal nutrition mandates and standards, and school vending machines)

- ✅ Hospitals: Be able to buy food and beverages whenever they want during the day.

Other deployments include tourist attractions, high-speed rail stations, apartment complexes, gas stations, gyms, industrial parks, and other high-traffic areas, all of which have relatively low labour demands, and consistent, recurring revenue.


The Application of 21.5-Inch Touchscreen Vending Machine with 60 Adjustable Slots.jpg

Our Service


Factory Direct Service

We are a direct manufacturer with no middlemen marking up prices, and we maintain full control over the entire process—from sheet metal fabrication and unit assembly to final system commissioning.

✅ Direct factory pricing offers customers more competitive procurement costs

✅ In-house R&D and manufacturing, with multi-tier quality control ensuring stable and durable products

✅ Customizable models, color schemes, and logos to flexibly meet your project needs

✅ Dedicated international sales team provides comprehensive technical documentation and after-sales support for a one-stop solution


Zhigou factory direct service.png

Payment

We provide flexible payment options, including cash, coins and cards & QR codes.


One-stop OEM & ODM customization support

We provide OEM/ODM Customization solutions to give you the flexibility to modify the commercial spiral vending machine configuration and appearance to meet your market needs, deployment scenario and brand positioning needs to give you a truly unique vending machine.

✅ Customizable Appearance: Custom body colour, illuminated logo panels, screen printing on the body and pattern designs on the panels to create a unique brand image - High end models offer customisable illuminated logos, whilst standard models offer customisable static logos.

✅ Hardware Configuration Customization: Choose between high-end and standard versions; select cooling or heating zones; adjust the number of product lanes and spacing as needed; and choose payment modules (QR code scanning, card swiping, bill acceptor, coin acceptor, MDB protocol kit).

✅ Functional Customization: Add or remove features as needed, such as product drop detection, glass defogging, remote backend permissions, audible and visual alerts, rodent-proof mesh, and coin overflow tray.

✅ Software Backend Customization: The SaaS management backend interface, backend language, currency units, tax rates, and report templates of the SaaS management backend can be customized to suit the operational regulations in various countries and regions.

✅ Packaging and Documentation Customization: Customized outer box labeling, multilingual versions of instruction manuals and operating guides, and supporting customs clearance documentation.

From solution consultation, drawing confirmation, prototype development, mass production, to shipment and delivery, a dedicated representative will manage the entire process, providing a one-stop solution for customization implementation to help you build your own branded vending machine project.


customization capabilities.png

FAQ

Q1: What is your MOQ?

A: Our MOQ is 1 unit. We support small trial orders and bulk orders. You can start your business with just one machine for testing the market.

Q2: What temperature modes are available for this 21.5-Inch Touchscreen Vending Machine with 60 Adjustable Slots?

A: Cooling mode (4–10°C) is standard. Heating mode (20–30°C) is optional. You can select the mode according to the products you sell, such as cold drinks, snacks or hot beverages.

Q3: What is the difference between the Premium version and Basic version? Can I mix versions in one order?

A: The Premium version comes with illuminated logo, thicker reinforced sheet metal, enhanced anti-pry security structure, front-drawable compressor for easier maintenance, industrial-grade power supply and full set of auxiliary functions including anti-fog glass, drop detection and mouse-proof net. The Basic version uses static printed logo, standard sheet metal structure and retains all core selling functions at a more budget-friendly price. You can freely mix premium and basic models in a single order to match different site tiers, high-end locations and low-cost locations

Q4: Does the machine follow MDB protocol? Can I swap payment devices from other brands locally?

A: Yes, it adopts standard MDB protocol. This is a critical advantage for overseas operators. You can replace or add local payment modules, bill validators and coin changers from mainstream local suppliers after delivery, without rewriting the main control program. This helps you adapt to local payment habits and after-sales supply chains in your country.

Q5: What documents can you provide for customs, product certification and local inspection?

A: We can supply CE, commercial invoice, packing list, bill of lading supporting documents, test report and user manual. Some markets require extra local certification; we can provide the internal test data and hardware structure information for you to apply for local certification. We will clearly inform you which certificates are included and which are buyer’s local responsibility before order confirmation.
