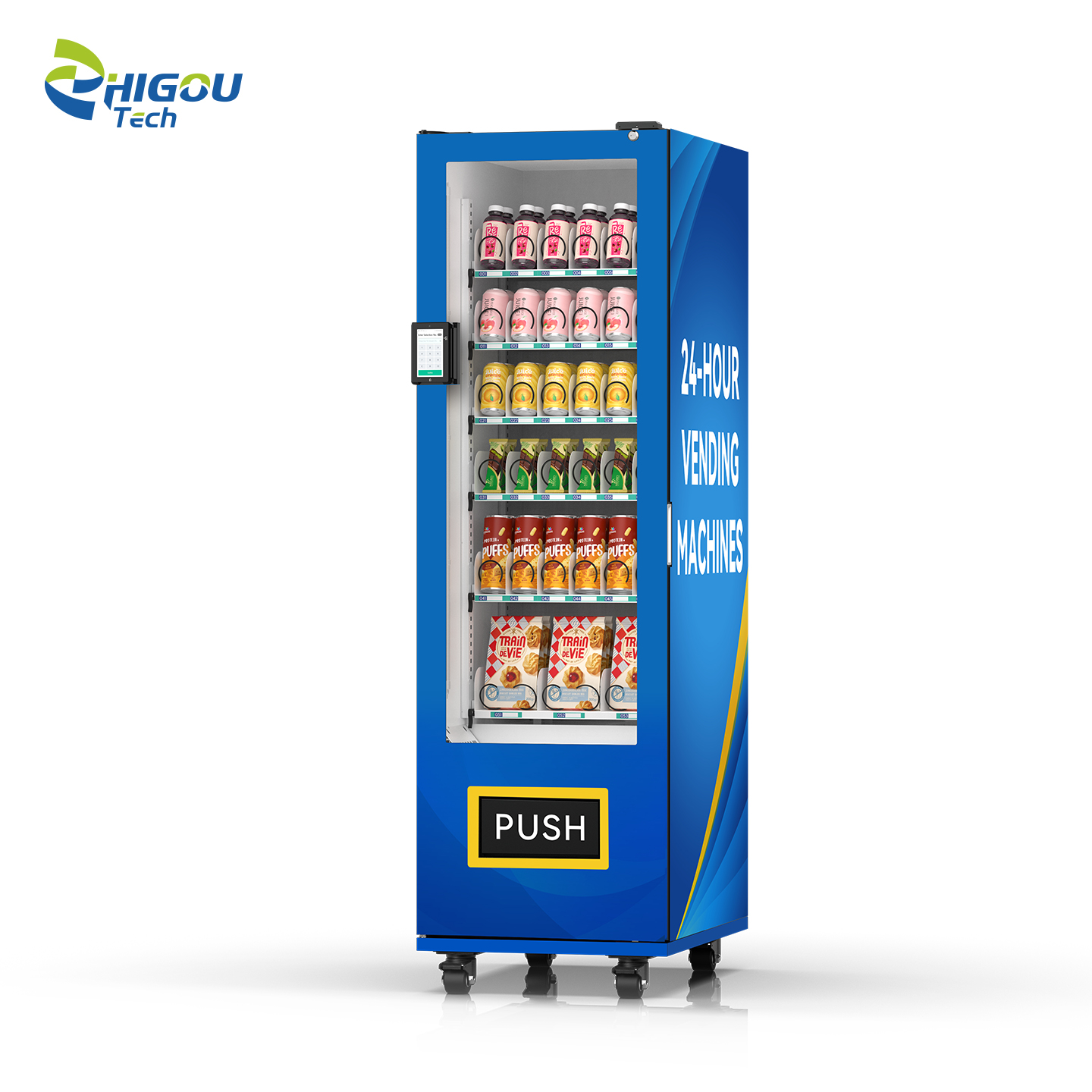

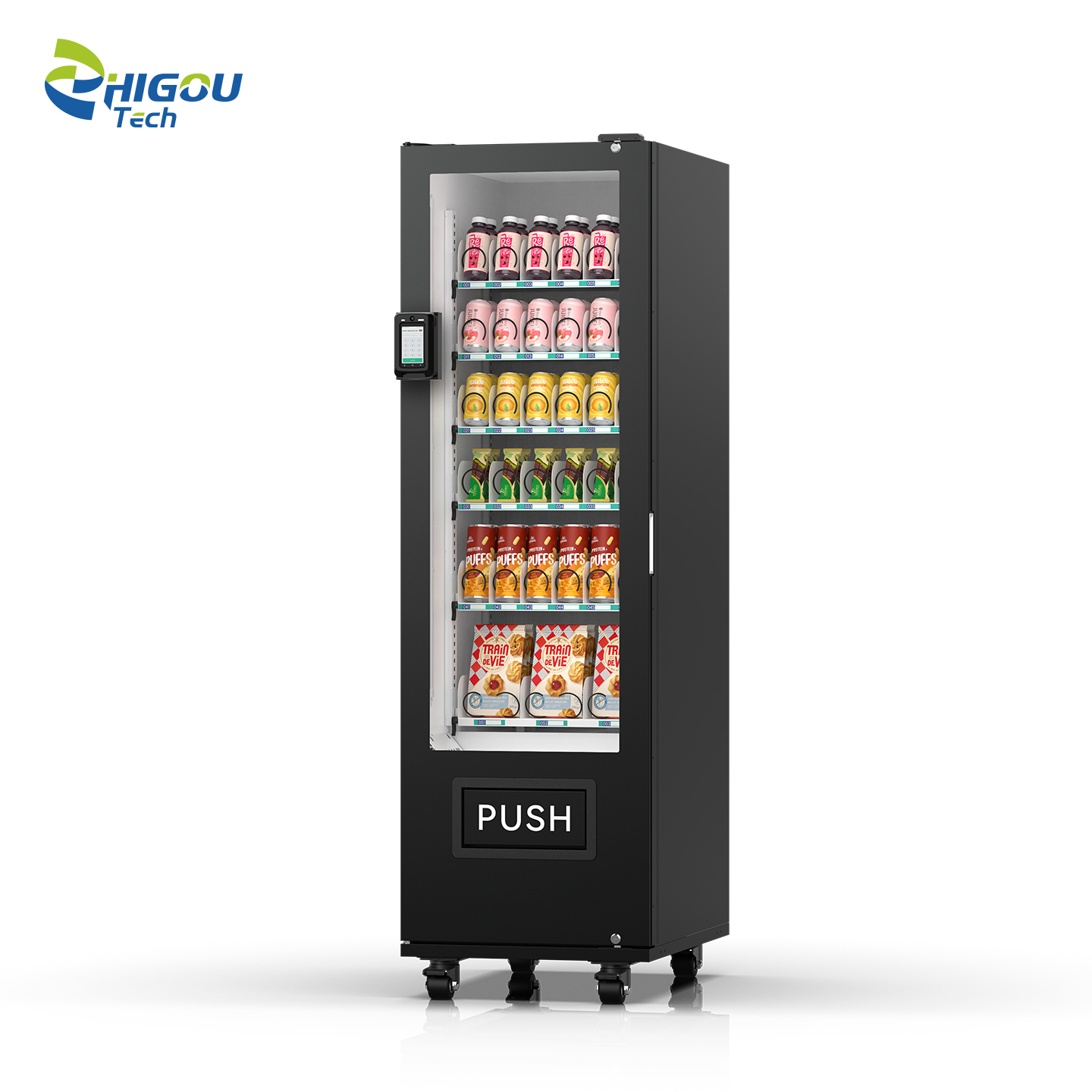

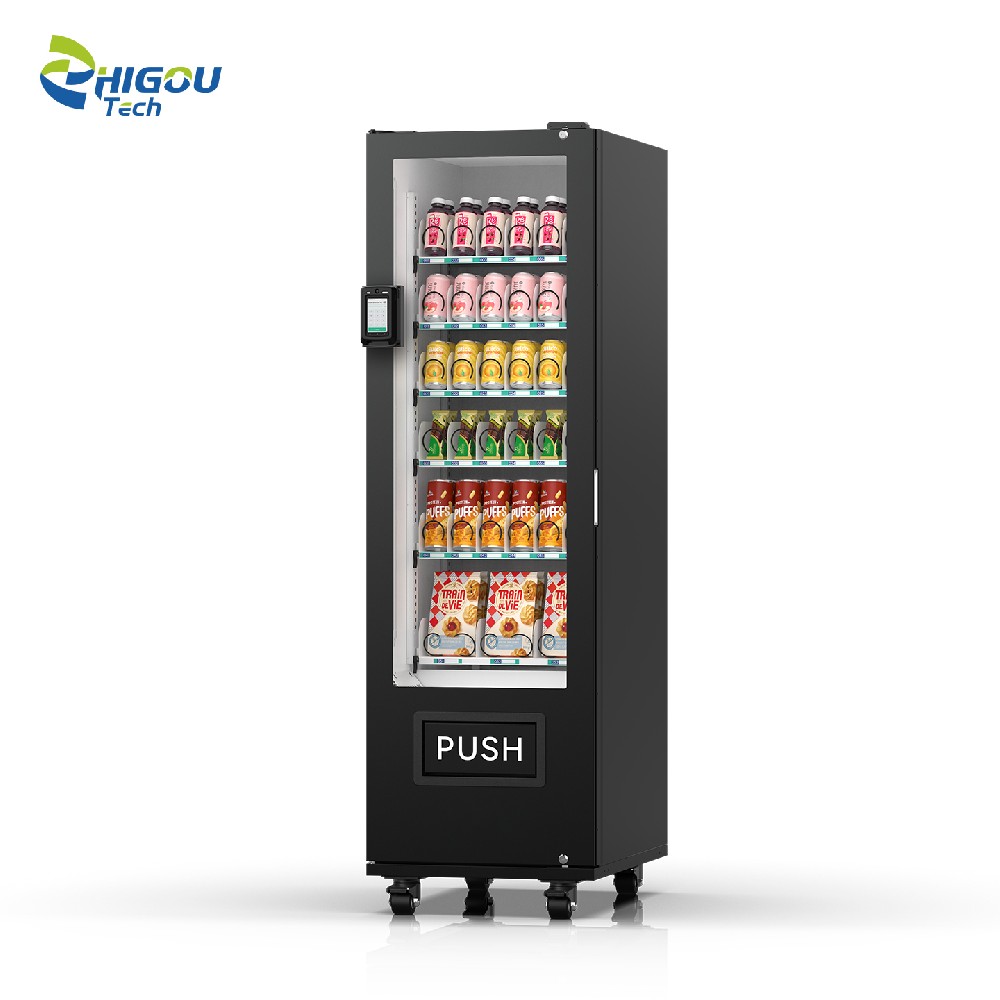

Card Reader Screen 36 Slots Vending Machine is classified as a compact, narrow-profile upright model with overall dimensions of 605 × 835 × 2020 mm and a net weight of 188 kg. The best 36-slot spiral vending machine can hold 180–360 units of standardized fast-moving consumer goods, such as bottled beverages, canned drinks, and bagged snacks. It supports dual temperature control—refrigeration at 4–10°C and heating at 20–30°C—and is designed to operate in standard indoor environments ranging from 5–32°C. Payment options include standard cashless solutions such as QR code scanning and card swiping. Equipped with a PC-based SaaS cloud management backend, the machine enables 24/7 unmanned self-service sales. Featuring mobile casters and a compact footprint, it is ideal for deployment in narrow, confined spaces such as hallways, offices, gyms, hotel corridors, and hospital passageways.

TECHNICAL SPECIFICATIONS

Why choose Zhigou Card Reader Screen 36 Slots Vending Machine?

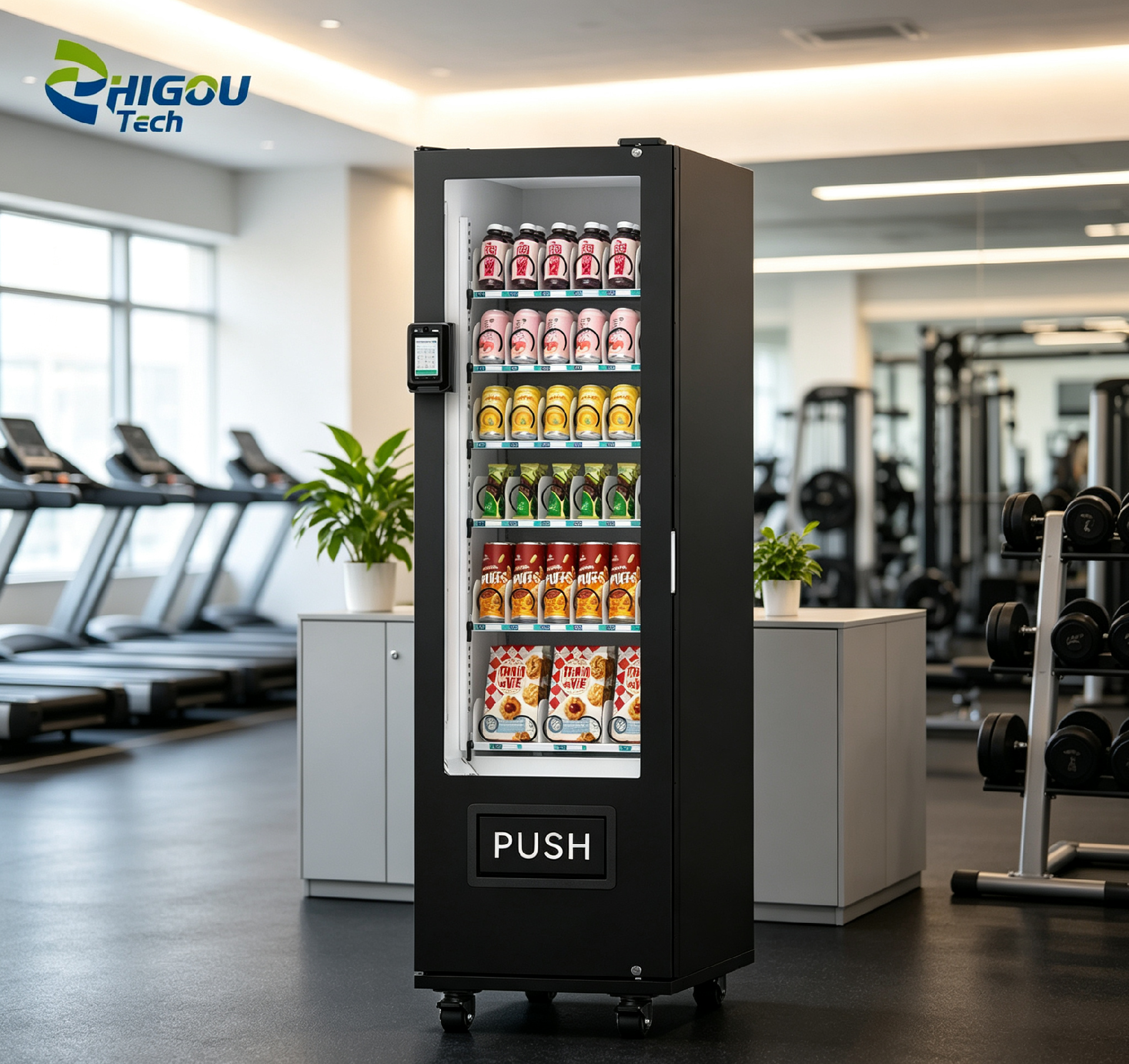

Slim, narrow design, ideal for long, narrow spaces

With a width of just 605 mm, the unit’s sleek, slender profile takes up minimal horizontal space, making it a perfect fit for office building hallways, hotel floor corridors, narrow factory passageways, and corners of gyms—areas where standard-width machines cannot be accommodated—offering greater flexibility in placement. The unit is equipped with casters, allowing it to be easily moved to different locations and positioned with flexibility.

Dual Temperature Control for Stable Year-Round Operation

Best 36-slot spiral vending machine maintains a stable 4–10°C, ensuring long-lasting freshness for beverages and yogurt; heating operates at 20–30°C, allowing for the sale of hot drinks in winter. Cooling power is 360W, and heating power is 500W; standby power consumption at room temperature is as low as 35W, with daily electricity consumption ranging from 5 to 8 kWh, keeping electricity costs manageable for long-term commercial use. Option to remove the heating function as needed, offering a single-refrigeration version suitable for regions with year-round high temperatures.

36 standard spring-loaded shelves, balanced capacity and versatile configuration

Card reader screen 36 slots vending machines are neatly organized and allow flexible arrangement based on product height, with a storage capacity ranging from 180 to 360 items. Compatible with the vast majority of bottled, canned, and bagged snacks and beverages on the market, featuring a wide range of SKUs and moderate restocking cycles, eliminating the need for frequent on-site restocking.

The card reader has a built-in screen

The card reader comes with a built-in screen, allowing you to both swipe cards and scan QR codes for payment directly on the screen—it’s simple and convenient, and you don’t have to spend extra money on a separate screen.

Broad environmental adaptability, commercial-grade durability, and peace of mind

Card reader screen 36 slots vending machine operates stably in temperatures ranging from 5°C to 32°C, effortlessly handling seasonal temperature fluctuations and indoor air conditioning variations; it features a mature spring-loaded mechanical structure with highly interchangeable parts, resulting in a low failure rate and high stability for 24-hour uninterrupted operation.

SaaS Cloud-Based Remote Digital Management

Users can remotely log in to the backend via computer or smartphone to view daily revenue, individual product sales, real-time inventory, and device temperature in real time; low inventory levels and device anomalies can be detected online, eliminating the need for repeated on-site inspections and inventory counts. Centralized online management of multiple devices significantly reduces manual maintenance workload and supports remote, self-service adjustment of product prices.

Fully Customizable Across All Dimensions

Best 36-slot spiral vending machine supports multiple customization options: interchangeable springs, hooks, and conveyor tracks to accommodate different products; optional heating function based on needs; flexible addition or removal of payment modules; customizable body logos, exterior decals, and casing colors; and customizable multilingual instruction manuals and warranty cards to meet private labeling and cross-border export requirements.

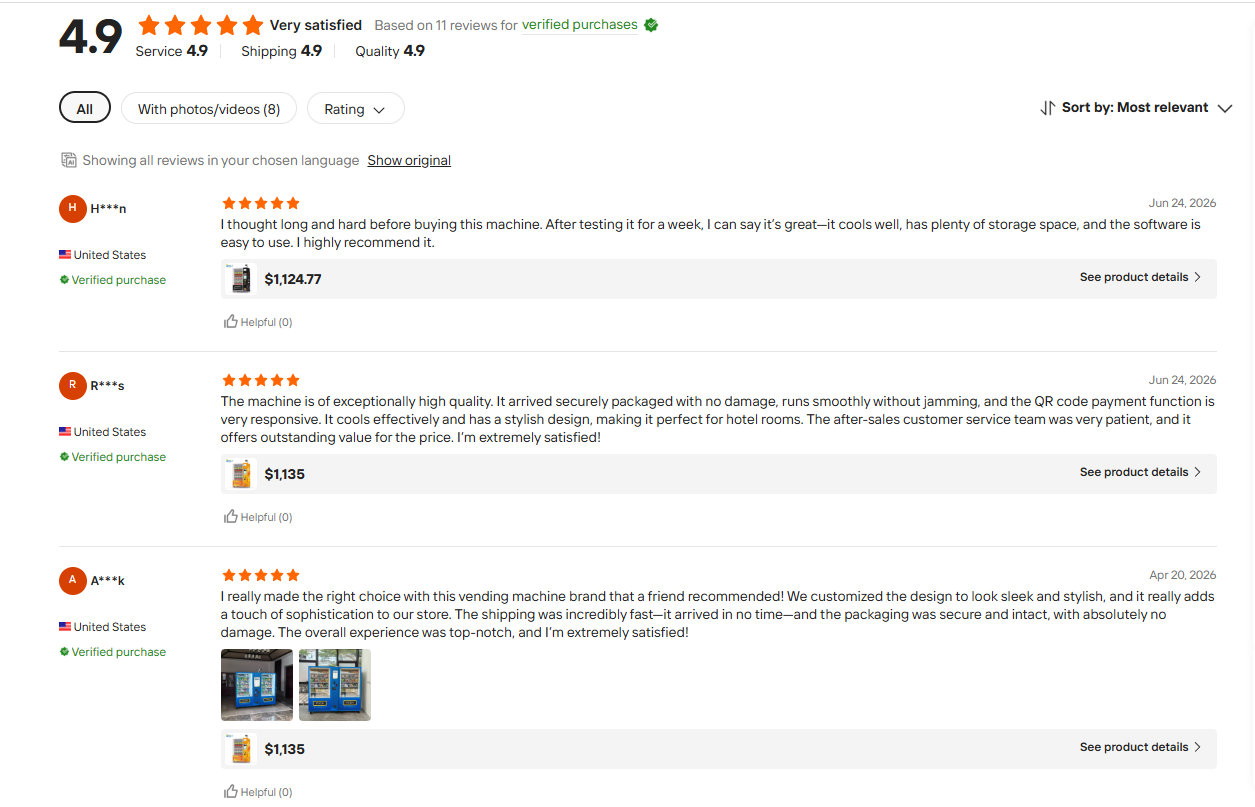

Customer Review

FAQ

Q1: How much narrower is this machine than a standard vending machine? Will it fit in a narrow hallway?

A: The machine is 605 mm wide, making it a slim model that can generally be placed in standard hallways and stairwells. It fits through standard doorways, and its casters make it easy to maneuver into narrow, elongated spaces.

Q2: Can cash (bills and coins) payment functionality be added?

A: Yes. The machine features a modular payment system. It comes standard with QR code scanning and card swiping, and bill and coin acceptors can be added as needed to accommodate locations requiring cash payments.

Q3: Is it possible to have only cooling without heating?

A: Customization is available. The heating component can be omitted at the factory, retaining only the 4–10°C refrigeration function to save on hardware costs.

Q4: Can prices be adjusted remotely via the backend, and can daily sales volume be viewed?

A: Yes. The PC-based SaaS cloud backend supports remote price adjustments, viewing of total revenue, inventory, and equipment temperature, and provides low-stock alerts.

Q5: Can the product chutes be modified to sell boxed boxed lunches or bagged snacks?

A: Yes, the spring-loaded product chute can be replaced with a hook-style or conveyor-belt chute to accommodate hanging snacks and boxed meals.

Q6: The machine weighs 188 kg. Is it difficult to move?

A: The base of the unit is equipped with swivel casters, allowing it to be easily pushed on flat surfaces. For bulk exports, the machine is packed in reinforced wooden crates; for domestic shipments, it is delivered directly to your doorstep.
